Product Specification

Brand Name: HAYEAR

Magnification Ratio: 500X & Under

Features: PORTABLE

Features: High Definition

Features: Handheld

Features: Digital

Theory: Video Microscope

Material: Aluminium Alloy

Drawtube: Monocular

Model Number: HY- 3307 37MP HDMI camera

Description:
Noting:

1:PC Support : Windows XP/7/8/10 system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3:When use USB connection, please make sure no TF card in the camera ,TF card storage is only for HDMI output. USB output will be storage in PC.
4:when connect the camera with computer, just plug the USB line is OK ( no need to use the power supply)

Features:

Model: Camera with HDMI USB2.0 two output
Image format: JPG
Video format: MP4

HDMI Image resolution: 8168*4592 16:9(37MP) (for TF Card),
USB Image resolution: 1920 *1080 (for PC USB)
Video resolution: 1920 *1080 @ 60FPS for HDMI, 1920 *1080 @ 30FPS 1280*[email protected] 30FPS 640*480 @ 30FPS 320*240 @ 30FPS  for USB
White Balance: Support
Light: Auto
Color: Color
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Russian/Italian/Japanese/German/Arabic
Line: different color,5 horizontal line , 5 vertical line,any positions




Specification:

Image sensor: 37MP CMOS sensor 1/2.3''
Effective pixel: 37megapixel
Pixel size:1.43x1.43um
Frame rate:60fps
Definition:FULL HD
Housing:metal
Video format: MP4

Digital magnification: 5 times digital zoom
Brightness control:Auto/manual
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, moveable
Different color, 5 horizontal line, 5 vertical line,any position
Lens: C or CS

TF card interface:Max 64G
HDMI interface:Standard HDMI output (Type A)
USB interface:Standard usb2.0 interface (Type B)

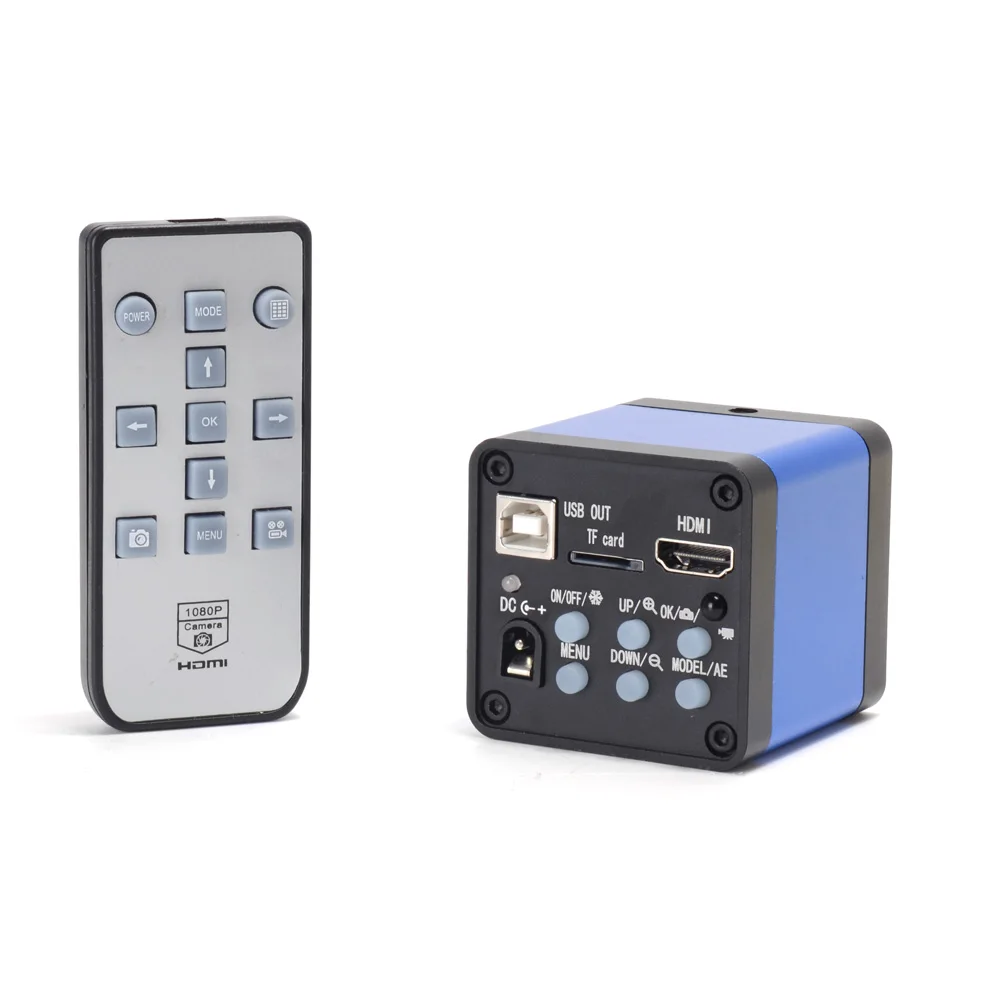

Package includes:

1 x 37MP Microscope Camera
1 x Power supply
1 x USB cable
1 x Software DISC
1 x Wireless Control
