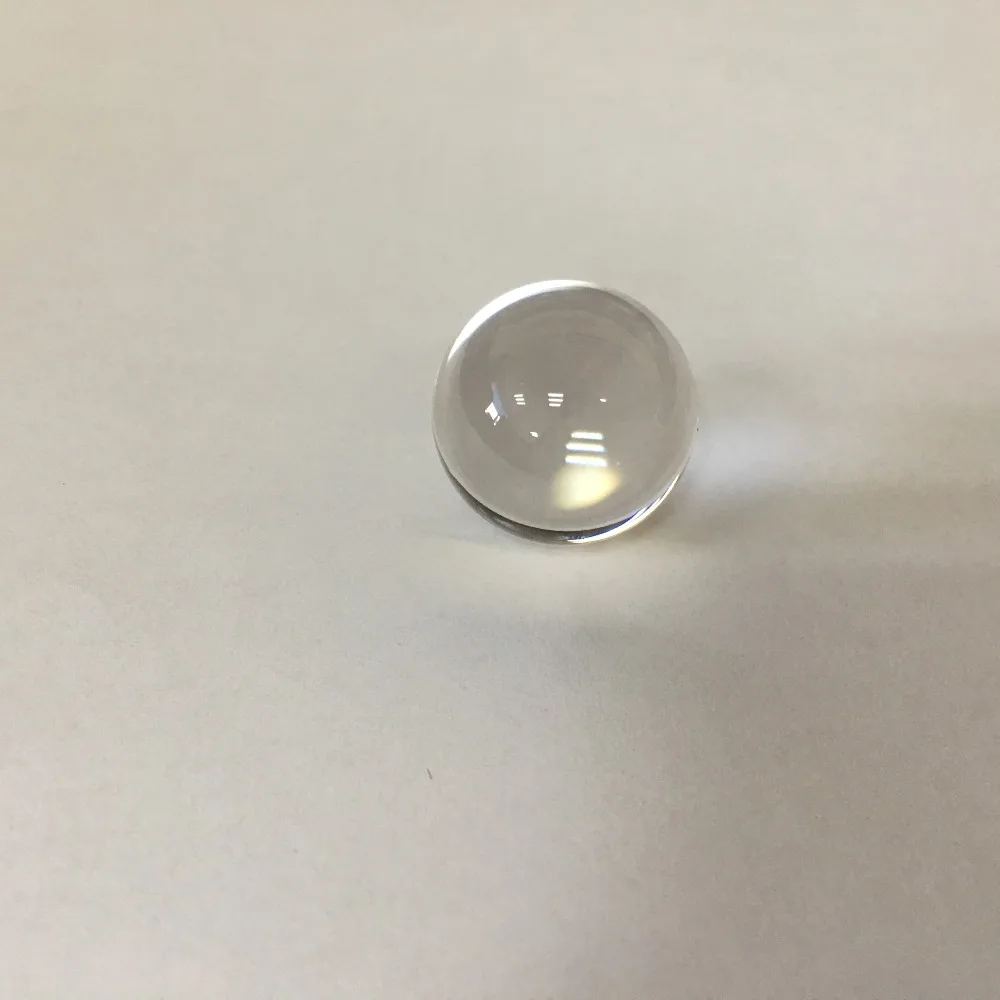

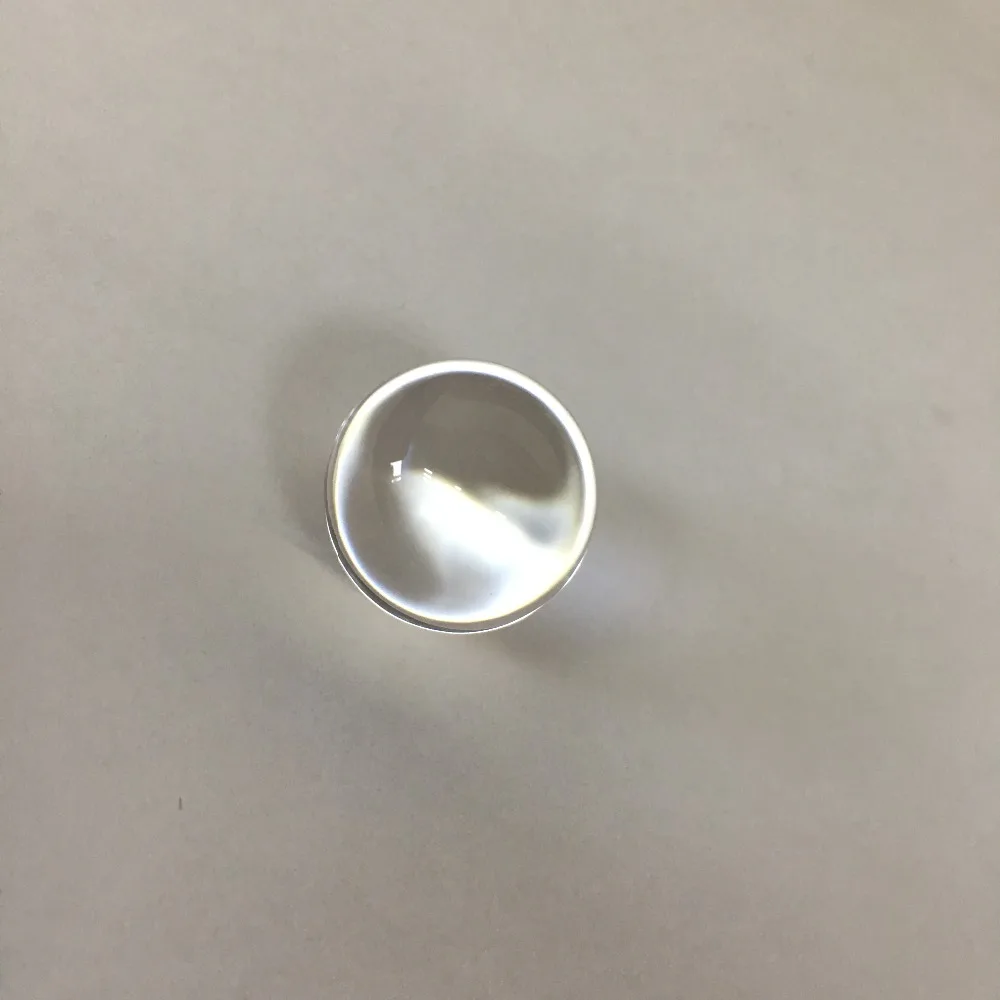

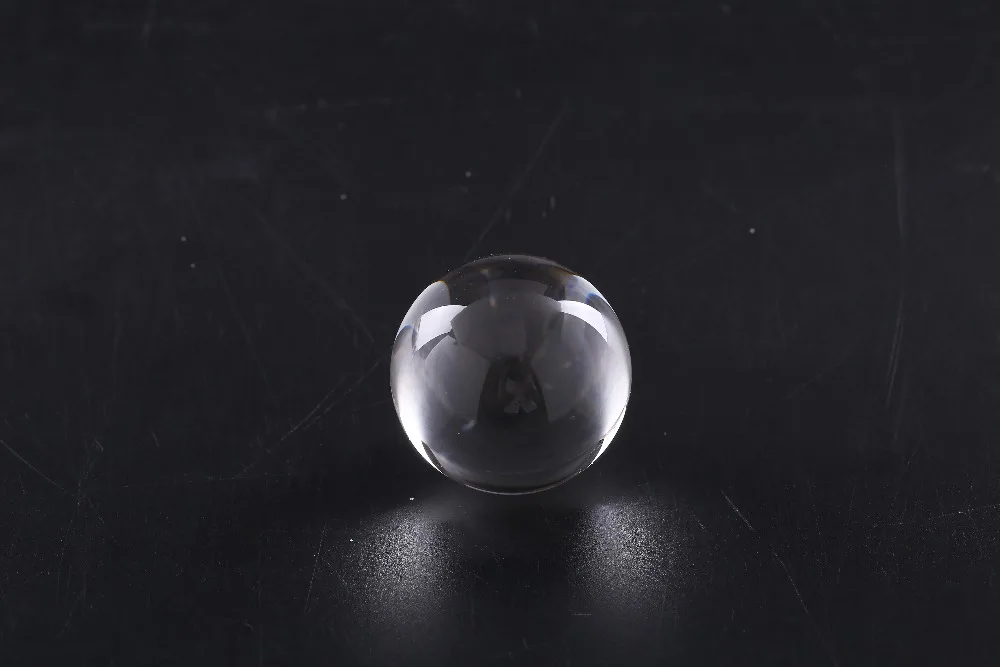

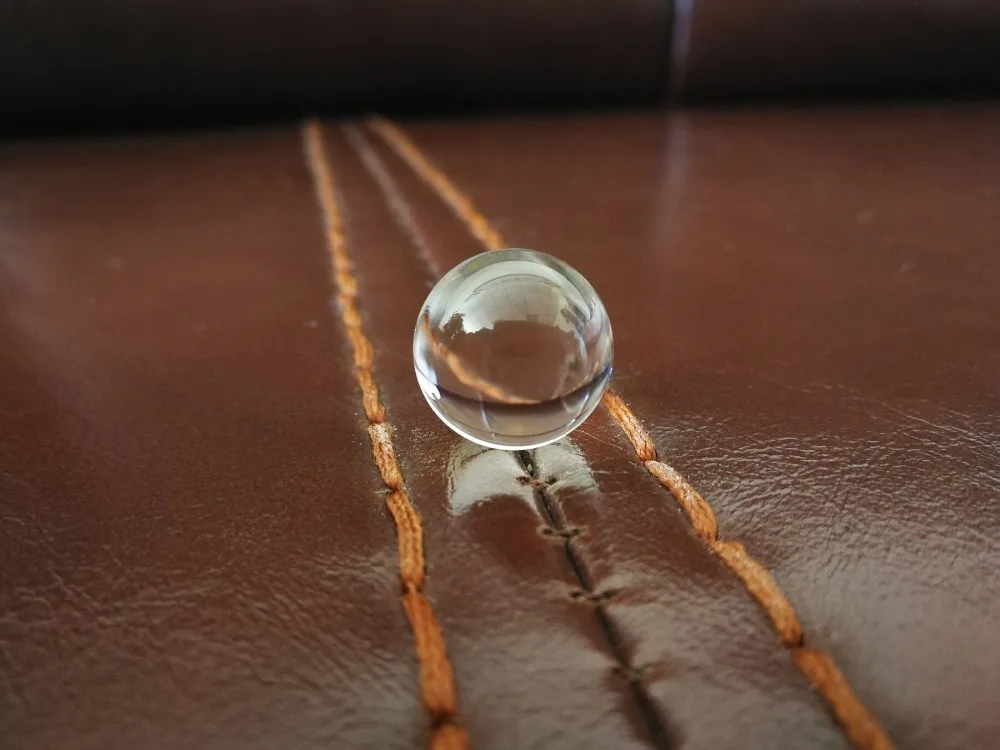

Product Specification

Model Number: D10mm

Usage: Optical

Shape: Ball

Brand Name: MoWen

Material: N-BK7

Structure: Ball lens

Description:

The lenses details is as follows:

Diameter: 10mm

Dia tolerance:+/-0.01mm

Surface quality: 60/40

Reflecting Coating: No

Application:optical fiber communication/medical endoscope/sensor,and other high precision optical instrumentstimg1

IMG_15649EBE69E523FA2BB76122A090DC1E1B1BIMG_4038IMG_4034

01timg900 02

Payment

We accept Alipay here and all major creditcards accepted by Alipay.

Shipping:

We only ship items to your confirmed address in AliExpress (except APO/FPO), so please make sure the address is correct before purchase.

Feedback:

900  03
